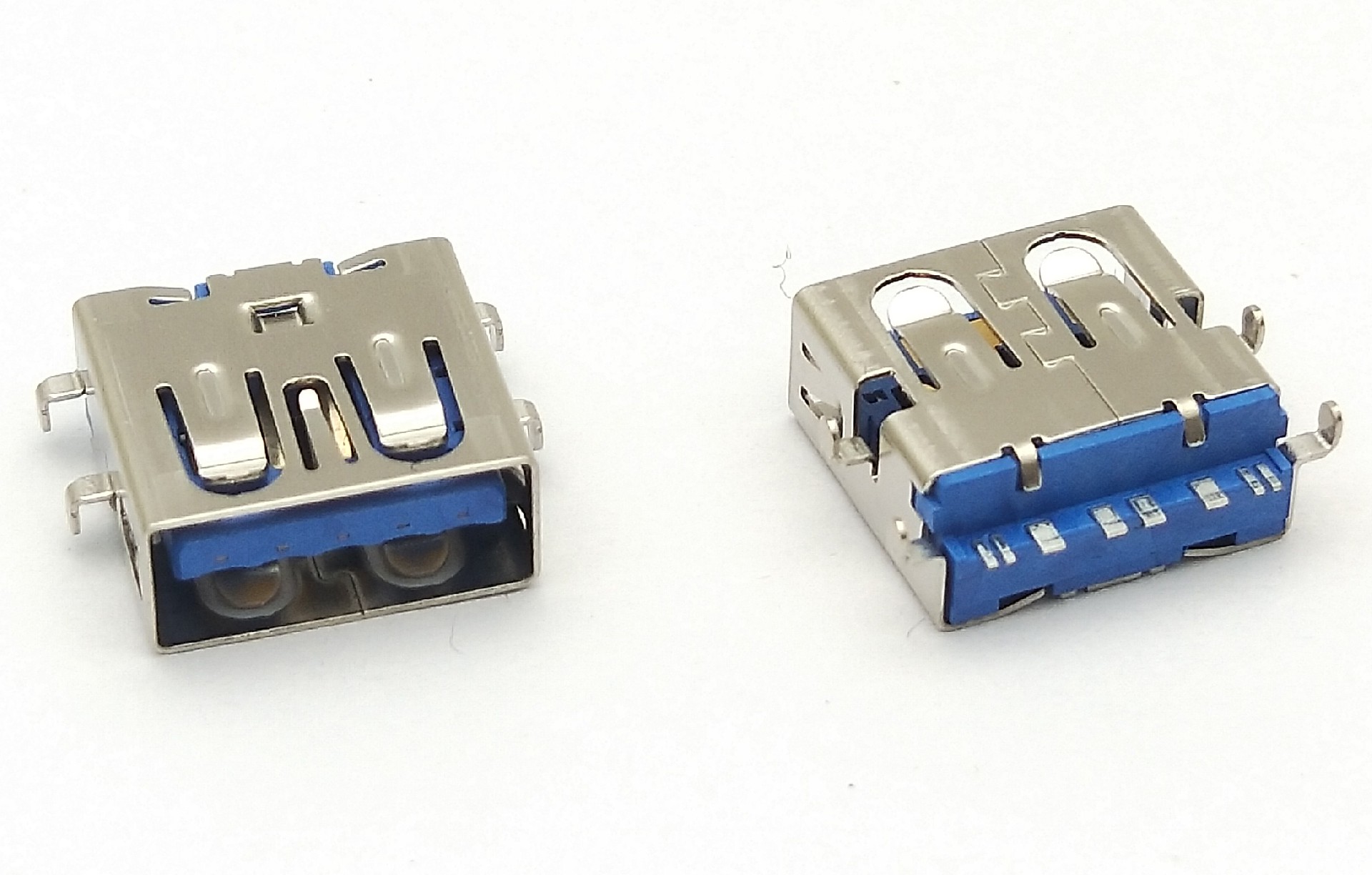

名稱(chēng)：USB A/F 3.1沉板 H=2.11 H=3.50(過(guò)10G)

NOTE:

1.MATERIAL:

  1.1 INSULATOR:LCP+30%GF, UL94 V-0.

  1.2 CONTACT 1~4PIN: C5191-EH.

  1.3 CONTACT 5~9PIN: C5191-EH.

  1.4 SHELL: SUS304 3/4H

2. PLATING:

  2.1 CONTACT:

      CONTACT AREA: GOLD PLATING.

      SOLDER AREA: 100u" Min MATTE TIN  PLATING.

      UNDER PLATE: 50u" Min NICKEL PLATING.

  2.2 SHELL:50u" Min. NICKEL PLATED OVERALL

3. CHARACTERISTICS:

  3.1 ELECTRICAL CHARACTERISTICS;

     CONTACTRESISTANCE:30m? MAXIMUM

     CONTACT CURRENT RATING: 3A

     DIELECTRIC WITHSTANDING VOLTAGE: 500 V R.M.S.

     INSULATION RESISTANCE: 100 MEGOHMS MIN

     OPERATING TEMPEROTURE: -25°C ～ +85°C

  3.2 MECHANICAL:

     MATING FORCE: 8N-20N.

     UNMATING FORCE: 8N-20N.

4.PART MUST COMPLY ROHS SPECIFICATION

5.WAVE SOLDER:THE CONNECTOR SHALL BE MOUNENTD

ON THE PCB.THE TEMPERATURE OF THE SOLDER SHALL

BE 260±5 °C AND IMMERSION DURATION 5 SECONDS.
